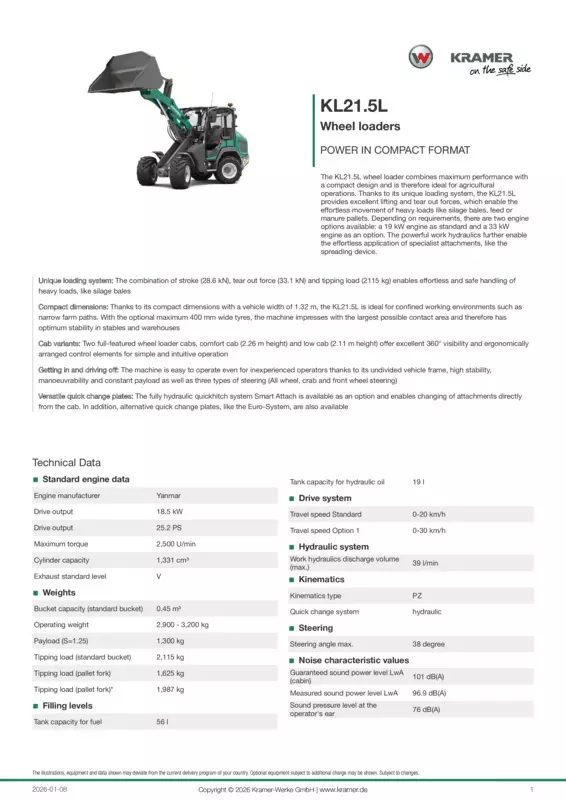

Wheel loaders KL21.5L - POWER IN COMPACT FORMAT
The KL21.5L wheel loader combines maximum performance with a compact design and is therefore ideal for agricultural operations. Thanks to its unique loading system, the KL21.5L provides excellent lifting and tear out forces, which enable the effortless movement of heavy loads like silage bales, feed or manure pallets. Depending on requirements, there are two engine options available: a 19 kW engine as standard and a 33 kW engine as an option. The powerful work hydraulics further enable the effortless application of specialist attachments, like the spreading device.
Wheel loaders KL21.5L
Benefits at a glance
- Unique loading system: The combination of lifting (28.6 kN), tearing force (33.1 kN) and tipping load (2,115 kg) enables effortless and safe handling of heavy loads such as silage bales
- Compact dimensions: Thanks to its compact dimensions with a vehicle width of 1.32 m, the KL21.5L is ideal for tight working environments such as narrow yard paths. With the optional maximum tire width of 400 mm, the machine impresses with the largest possible footprint and thus has optimum stability in stables and warehouses
- Cab variants: Two fully-fledged wheel loader cabs, comfort cab (2.26 m high) and low cab (2.11 m high) offer excellent all-round visibility and ergonomically arranged controls for simple and intuitive operation
- Get in and drive off: The machine is easy to operate even for inexperienced drivers thanks to its undivided vehicle frame, high stability, maneuverability and constant payload as well as three steering modes (all-wheel, crab and front-axle steering)
- Versatile quick-change plates: The fully hydraulic Smart Attach quick-change system is available as an option and enables attachments to be changed directly from the cab. Alternative quick-release plates, such as the Euro system, are also available
Highlights
360° all-round view
- Excellent all-round visibility thanks to large glass surfaces and narrow cab pillars
- Panoramic windshield for an optimum view of the attachment
All-wheel steering
- High stability even at full steering lock thanks to the undivided frame
- Maximum maneuverability thanks to steering angles of up to 40° on both the front and rear axles
- Consistent payload independent of the steering angle for constant leverage ratios
Low cabin
- OpitimIdeal for use where there are restricted clearance heights
- Different cabin versions optionally available
- Complete comfort despite the low design
Fast gear 30 km/h
- Time savings due to higher final speed
- Allows for quick transfer trips between nearby job sites
- Stepless acceleration from 0 to 30 km/h
Loader unit PZ-kinematics
- High breakaway forces on tipping cylinder
- Precise parallel motion from attachments
- Combines the benefits of P-kinematics and Z-kinematics
Further Highlights
Pressure relief 3. Steering committee
- Quick and easy coupling and uncoupling of attachments with additional hydraulic functions while the engine is running
- Convenient pressure relief thanks to optimally positioned button on the loading system
- Saves time when changing hydraulically operated attachments
Combined brake-inch pedal
- Simple and safe operation thanks to combined brake-inch pedal
- Wear-free regulation of the working speed even at high engine speeds
- Maximum working hydraulics even at low working speeds
Operating mode
- The operator has the choice of two different operating modes: Power, Eco and CSD (Constant Speed Drive)
- The right operational setting can be selected for every application at the press of a button
- Maximum output and familiar driving behaviour or maximum economic efficiency as a result of fuel-saving and noise reduction
Easy maintenance access
- Easy access to the engine compartment thanks to the wide-opening hood
- Optimum accessibility of all important components for checking fill levels
- Quick implementation of service work thanks to vertically mounted filters and additional maintenance openings
Automatic central lubrication system
- Longer service life and value retention of the machine thanks to automatic lubrication of all lubrication points
- Time and cost savings thanks to low and bundled maintenance of the centralized lubrication system
- Optimum lubrication thanks to adjustable time intervals and grease quantities
Color-coded switches
- Uniformed color scheme for hydraulic, electric, driving, and safety features
- Increased safety due to minimized danger of mixing up switches
- Operating concept that reaches across all models to simplify the handling of the fleet
One-piece vehicle frame
- High stability, even on rough terrain
- Constant payload due to the constant leverage ratios. Independent of the steering angle, the payload always remains the same
- Great maneuverability due to the high steering angle. Therefore, some steering movements are superfluous, and travel and cycle times are reduced
Front axle steering
- Safe and familiar road travel at high speed
- Precise guidance of special attachments
- Easy maneuvering in trailer mode
Crab steering
- Easy maneuvering in confined spaces
- Gentle driving on sensitive surfaces
- Simple control in combination with special attachments
Smart Attach (fully hydraulic quickhitch system)
- Coupling of hydraulically driven attachments with the automatic connection of the hydraulic circuit, without the need to get out and in
- Increased productivity as a result of cost and time savings
- Attachments changed within seconds for full flexibility
Panoramic glazing
- Optimum visibility over the entire lifting range
- Pleasant feeling of space thanks to generous glass surfaces
-
Please note that the product range may vary depending on the country.
-
The technical data of the products may vary accordingly with the selection of different options.
